Permalloy 80
MATERIAL OVERVIEW
Permalloy 80 is an alloy of nickel, iron and molybdenum. It is a soft magnetic alloy with exceptionally high magnetic permeability. The alloy has a low coercivity, near zero magnetostriction, and significant anisotropic magnetoresistance. The low magnetostriction is critical for industrial applications, where variable stresses in thin films would otherwise cause a ruinously large variation in magnetic properties.
To view a photo of the item hover over the
icon.
GENERAL PROPERTIES
|
Symbol/Alloy: |
Permalloy 80 |
|
Density: |
8.72 g/cm3 |
|
Melting Point: |
1450 oC |
| Electrical Resistivity at R.T.: | 59 microhm-cm |
TYPICAL ANALYSES - Chemical Composition
|
Material / Alloy Percent: |
Permalloy 80 |
| Ni | 80 |
| C | 0.1 |
| Mn | 0.5 |
| Fe | balance |
| Si | 0.3 |
| Mo | 4.4 |

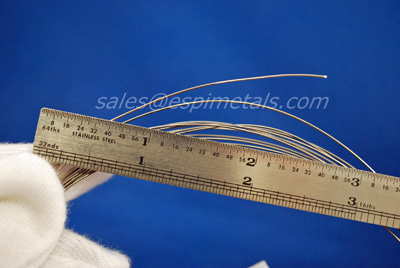

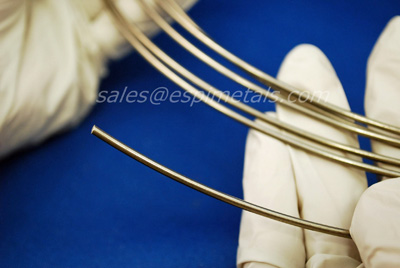

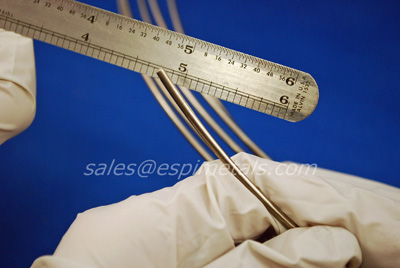

PERMALLOY WIRE
|
Material |
Alloy |
| Permalloy Wire .005” | 80 |
| Permalloy Wire .010" | 80 |
| Permalloy Wire .020" | 80 |
| Permalloy Wire .030" | 80 |
| Permalloy Wire .040" | 80 |
Permalloy Wire .080"   |
80 |
Wire is spooled to order and sold by the foot or meter. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.
PERMALLOY ROD
|
Material |
Alloy |
| Permalloy Rod .225” | 80 |
| Permalloy Rod .250" | 80 |
| Permalloy Rod .500" | 80 |
| Permalloy Rod .750" | 80 |
| Permalloy Rod 1" | 80 |
| Permalloy Rod 1.92" | 80 |
Rod is cut to order and sold by the inch or foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.
PERMALLOY FOIL
|
Material |
Alloy |
| Permalloy Foil .003” | 80 |
| Permalloy Foil .004” | 80 |
| Permalloy Foil .005” | 80 |
| Permalloy Foil .006” | 80 |
| Permalloy Foil .007” | 80 |
| Permalloy Foil .008” | 80 |
| Permalloy Foil .009” | 80 |
Foil is cut to order and sold by the square inch or square foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.
PERMALLOY SHEET
|
Material |
Alloy |
| Permalloy Sheet .010” | 80 |
| Permalloy Sheet .015" | 80 |
| Permalloy Sheet .030 | 80 |
Sheet is cut to order and sold by the square inch or square foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.
PERMALLOY POWDER, SHOT, PELLETS, & INGOT
|
Material |
Alloy |
| Permalloy Pellets .125"D X .125"L | 80 |
| Permalloy Pellets .250"D X .250"L | 80 |
Powder, shot, pellets, and ingots are packaged to order and sold by the gram or kilogram. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional specifications or custom requirements.
|
|
