Niobium
MATERIAL OVERVIEW
Characteristics: Gray or silvery, ductile metal; does not tarnish or oxidize at room temperature. Reacts with oxygen and halogens only when heated. Less corrosion-resistant than tantalum at high temperature. Not attacked by nitric acid up to 100 °C, but vigorously attacked by mixture of nitric and hydrofluoric acids. Hot, concentrated hydrochloric, sulfuric, and phosphoric acids attack it, but hot, concentrated nitric acid does not. Unaffected at room temperature by most acids and by aqua regia. It is attacked by alkaline solutions to some extent at all temperatures.
To view a photo of the item hover over the
icon.
NIOBIUM VIDEO CLIPS
|
|
Click the camera icon to view:
|
|
|
Click the camera icon to view:
|
|
|
Click the camera icon to view:
|
GENERAL PROPERTIES
|
Symbol: |
Nb |
|
Atomic Number: |
41 |
|
Atomic Weight: |
92.9064 |
|
Density: |
8.57 gm/cc |
|
Melting Point: |
2468 oC |
|
Boiling Point: |
4742 oC |
|
Thermal Conductivity: |
0.537 W/cm/K @ 298.2 K |
|
Electrical Resistivity: |
12.5 microhm-cm @ 0 oC |
|
Electronegativity: |
1.6 Paulings |
|
Specific Heat: |
0.064 Cal/g/K @ 25 oC |
|
Heat of Vaporization: |
- |
|
Heat of Fusion: |
6.5 Cal/gm mole |
|
|
|
|
|
|
TYPICAL ANALYSES - Impurities in ppm
|
Material / Purity: |
2N5 | 3N |
| Fe | 100 | 30 |
| Ni | 175 | 50 |
| Si | 30 | 10 |
| Sn | <100 | <50 |
| Ta | 500 | 300 |
| W | <100 | <50 |

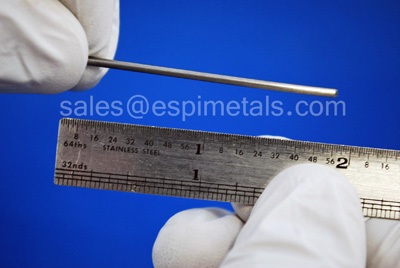

NIOBIUM WIRE
|
Material |
Purity |
| Niobium Wire .001” |
2N8, 3N |
| Niobium Wire .002" | 2N8, 3N |
| Niobium Wire .003" | 2N8, 3N |
| Niobium Wire .004" | 2N8, 3N |
| Niobium Wire .005" | 2N8, 3N |
| Niobium Wire .006" | 2N8, 3N |
| Niobium Wire .007" | 2N8, 3N |
| Niobium Wire .008" | 2N8, 3N |
| Niobium Wire .009" | 2N8, 3N |
| Niobium Wire .010" | 2N8, 3N |
| Niobium Wire .015" | 2N8, 3N |
| Niobium Wire .020" | 2N8, 3N |
| Niobium Wire .025" | 2N8, 3N |
Niobium Wire .030"  |
2N8, 3N |
| Niobium Wire .040" | 2N8, 3N |
| Niobium Wire .050" | 2N8, 3N |
| Niobium Wire .062" | 2N8, 3N |
| Niobium Wire .070" | 2N8, 3N |
| Niobium Wire .080" | 2N8, 3N |
| Niobium Wire .090" | 2N8, 3N |
Wire is spooled to order and sold by the foot or meter. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.

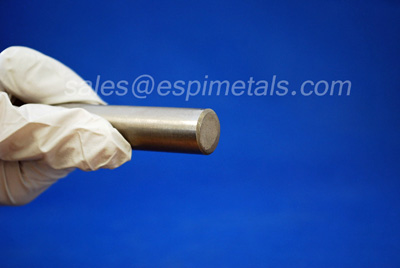

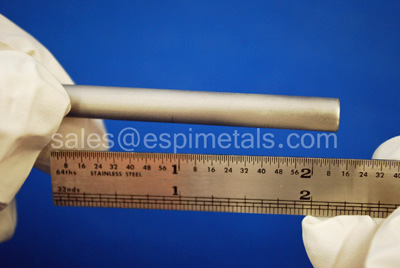

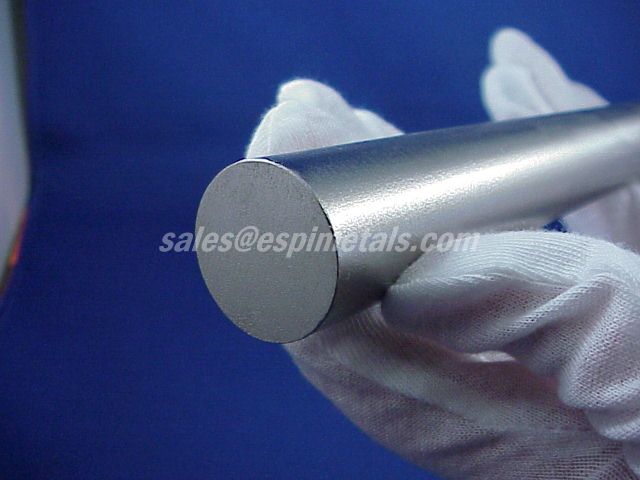

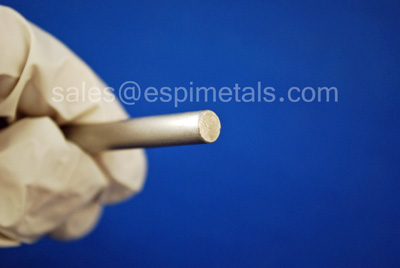

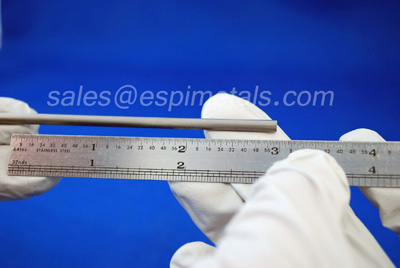

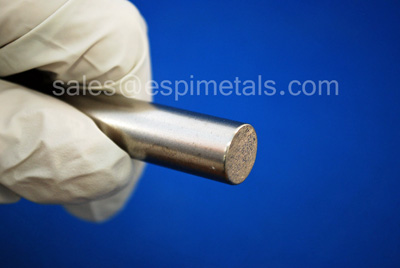

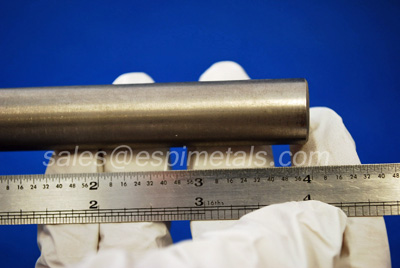

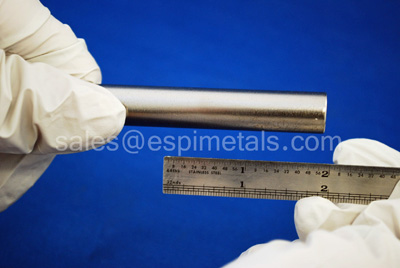

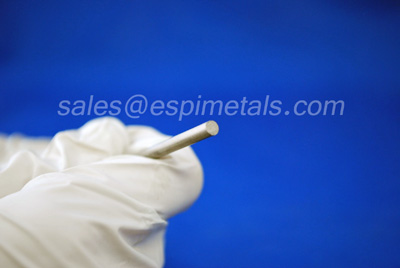

NIOBIUM ROD
|
Material |
Purity |
Niobium Rod .0625”  |
2N8, 3N |
Niobium Rod .125”   |
2N8, 3N |
Niobium Rod .250”   |
2N8, 3N |
Niobium Rod .500”   |
2N8, 3N |
Niobium Rod .625”   |
2N8, 3N |
| Niobium Rod .750” | 2N8, 3N |
| Niobium Rod 1” | 2N8, 3N |
Rod is cut to order and sold by the inch or foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.

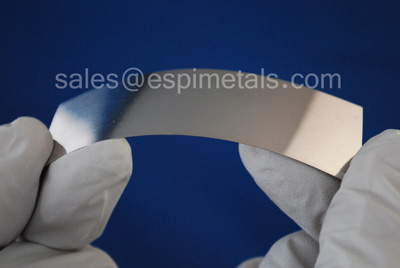

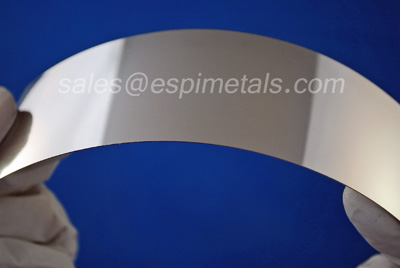

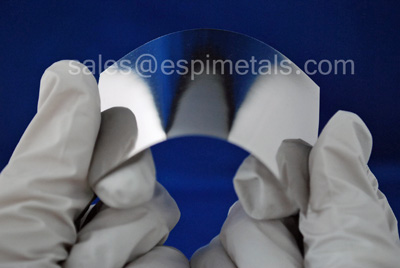

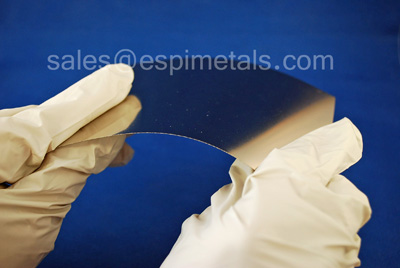

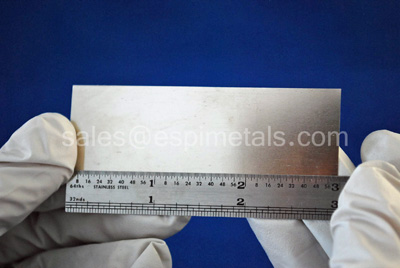

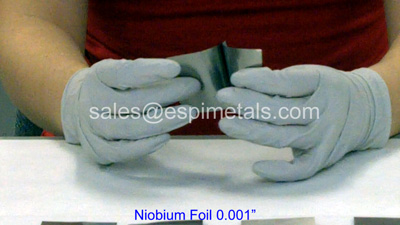

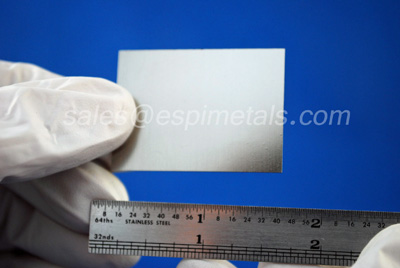

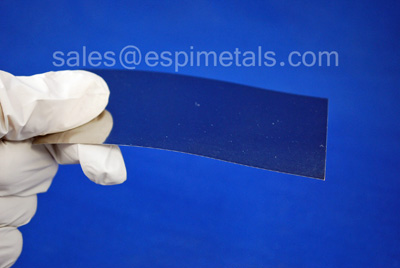

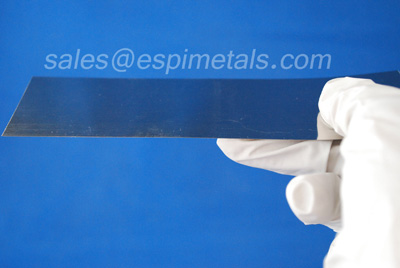

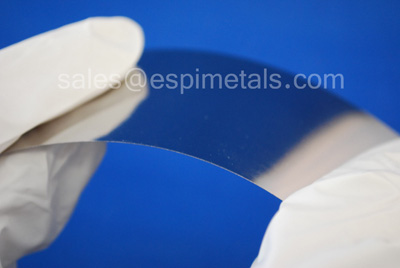

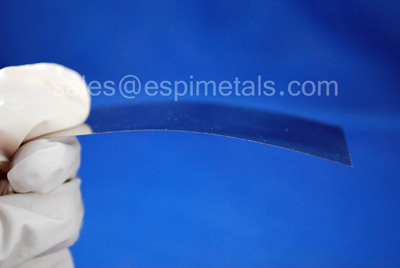

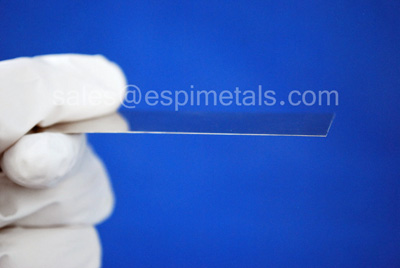

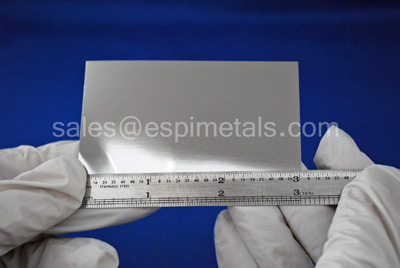

NIOBIUM FOIL
|
Material |
Purity |
| Niobium Foil .001” | 3N |
Niobium Foil .002”    |
3N |
Niobium Foil .003”    |
3N |
Niobium Foil .004”    |
3N |
Niobium Foil .005”    |
3N |
| Niobium Foil .006” | 3N |
Niobium Foil .007”    |
3N |
Niobium Foil .008”    |
3N |
| Niobium Foil .009” |
3N |
Foil is cut to order and sold by the square inch or square foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.

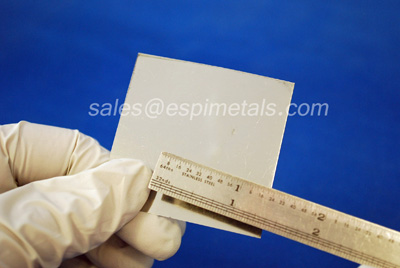

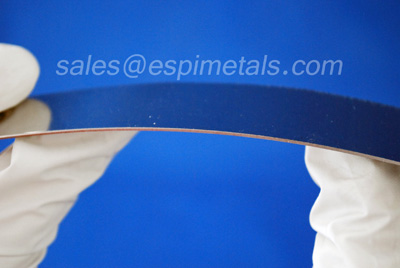

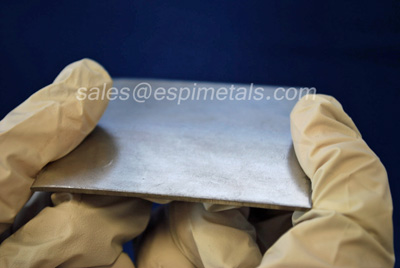

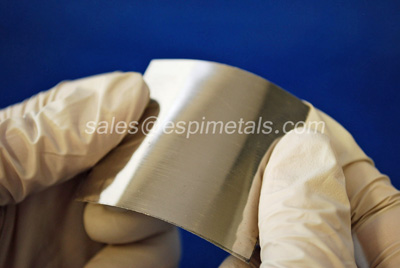

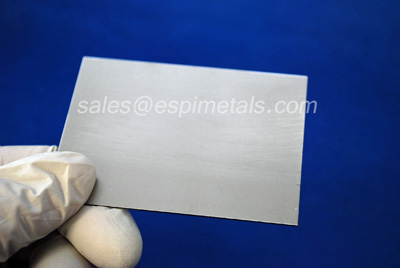

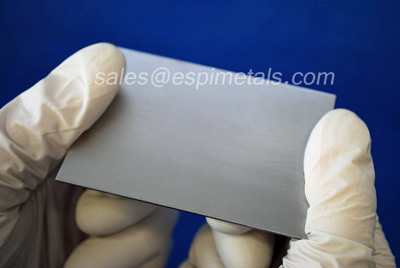

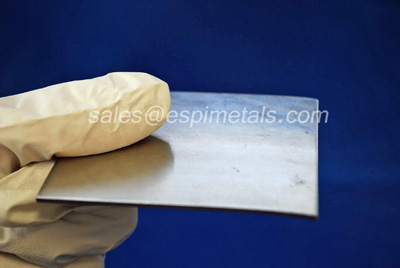

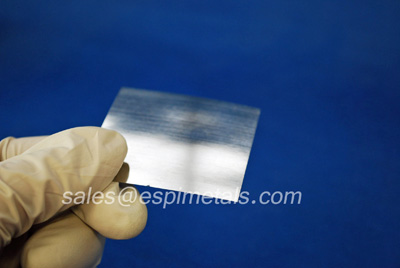

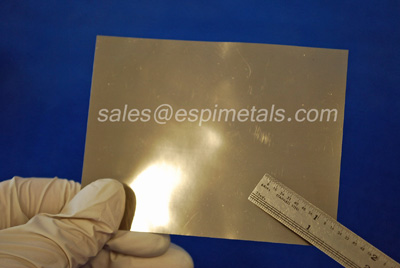

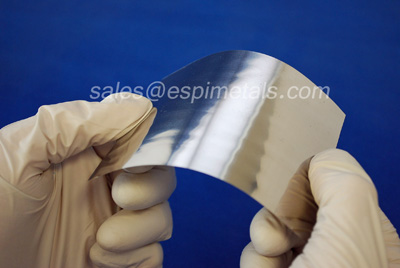

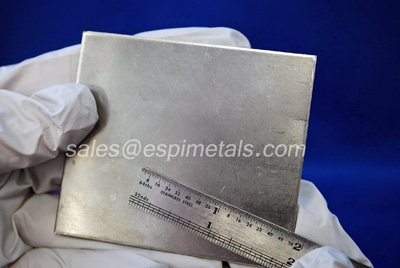

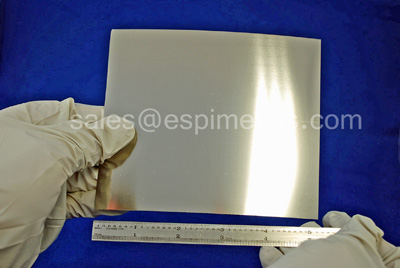

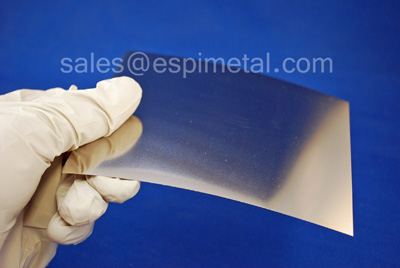

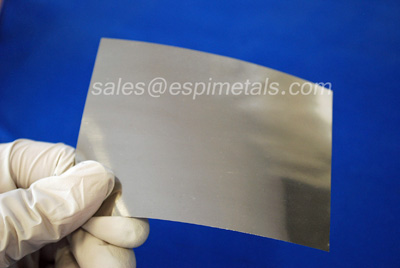

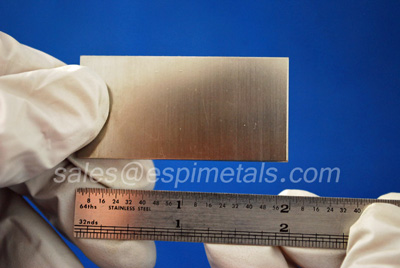

NIOBIUM SHEET
|
Material |
Purity |
Niobium Sheet .010”    |
2N8, 3N |
| Niobium Sheet .015" | 2N8, 3N |
| Niobium Sheet .020" | 2N8, 3N |
| Niobium Sheet .025" | 2N8, 3N |
Niobium Sheet .030"    |
2N8, 3N |
Niobium Sheet .040"    |
2N8, 3N |
| Niobium Sheet .050" | 2N8, 3N |
Niobium Sheet .060"    |
2N8, 3N |
| Niobium Sheet .062" | 2N8, 3N |
| Niobium Sheet .080" | 2N8, 3N |
| Niobium Sheet .125" | 2N8, 3N |
| Niobium Sheet .250" | 2N8, 3N |
| Niobium Sheet .375" | 2N8, 3N |
| Niobium Sheet .500" | 2N8, 3N |
| Niobium Sheet .625" | 2N8, 3N |
| Niobium Sheet .750" | 2N8, 3N |
| Niobium Sheet 1" | 2N8, 3N |
Sheet is cut to order and sold by the square inch or square foot. Additional sheet thicknesses are available in increments of .001”. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for optional thicknesses or custom sizes.
NIOBIUM SPUTTERING TARGETS
| Material | Purity |
| Niobium Sputtering Target 2"D X .125"T | 2N8, 3N |
| Niobium Sputtering Target 2"D X .250"T | 2N8, 3N |
| Niobium Sputtering Target 3"D X .125"T | 2N8, 3N |
| Niobium Sputtering Target 3"D X .250"T | 2N8, 3N |
| Niobium Sputtering Target 4"D X .125"T | 2N8, 3N |
| Niobium Sputtering Target 4"D X .250"T | 2N8, 3N |
Targets are made to order and packaged individually. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters, thicknesses or custom sizes.

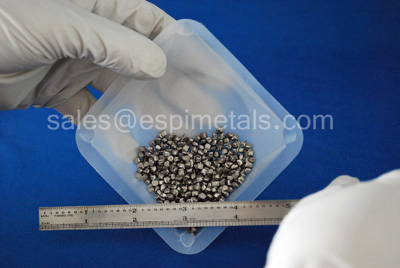

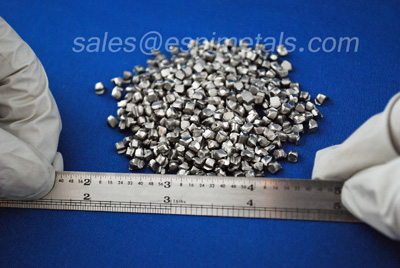

NIOBIUM POWDER, SHOT, PELLETS, & INGOT
|
Material |
Purity |
Niobium Pellets .125"D X .125"L   |
2N8, 3N |
| Niobium Pellets .250"D X .250"L | 2N8, 3N |
| Niobium Ingot | 2N8, 3N |
| Niobium Powder-100 Mesh | 2N8, 3N |
| Niobium Powder-325 Mesh | 2N8, 3N |
Powder, shot, pellets, and ingots are packaged to order and sold by the gram or kilogram. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional specifications or custom requirements.
NIOBIUM COMPOUNDS
|
Material |
Purity
|
| Niobium Boride NbB2 -325 Mesh | 2N5 |
| Niobium Carbide NbC -325 Mesh | 2N5 |
| Niobium Carbide Nb2C -325 Mesh | 2N5 |
| Niobium Nitride NbN -325 Mesh | 2N5 |
| Niobium Oxide Nb2O5 1/2" to 1/8" Pieces | 3N5 |
| Niobium Oxide Nb2O5 -325 Mesh | 2N5, 3N5 |
| Niobium Silicide NbSi2 -325 Mesh | 2N5 |
Compounds are packaged to order and sold by the gram or kilogram. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional specifications or custom requirements.
|
|
