Hastelloy®
MATERIAL OVERVIEW
Hastelloy® is a trademark for a series of high-strength, nickel based, corrosion resistant alloys produced by Haynes International. Alloys of identical chemical and mechanical properties are available from other manufacturers and offer excellent alternatives to the various Hastelloy alloys. Other components of the alloys include molybdenum and chromium. These alloys are well suited for most chemical applications. They have excellent resistance to pitting, stress-corrosion cracking and to oxidizing atmospheres up to 1900 oF.
To view a photo of the item hover over the
icon.
GENERAL PROPERTIES
|
Density |
8.89 gm/cm3 |
|
Specific Heat: |
427 oC |
|
Melting Point Range: |
1325-1370 oC |
|
Thermal Conductivity: |
9.8 W/M-k |
|
Electrical Resistivity: |
1300 |
|
Coefficient of Thermal Expansion: |
11.2 um/M-k |
TYPICAL ANALYSES - Chemical Composition
|
Material / Purity (%): |
C-276 |
C-22 |
| Ni | 57.0 | 56.0 |
| Co | 2.50 | 2.50 |
| Cr | 15.5 | 22.0 |
| Mo | 16.0 | 13.0 |
| W | 4.00 | 3.00 |
| Fe | 5.50 | 3.00 |
| Si | 0.080 | 0.080 |
| Mn | 1.000 | 0.500 |
| P | 0.025 | 0.010 |
| S | 0.010 | 0.020 |
| V | 0.350 | 0.350 |
HASTELLOY® WIRE
|
Material |
Alloy |
| Hastelloy® Wire .003” to .250” | C276, C22 |
Wire is spooled to order and sold by the foot or meter. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.
HASTELLOY® ROD
|
Material |
Alloy |
| Hastelloy® Rod .0625” | C276 |
| Hastelloy® Rod .125” | C276 |
| Hastelloy® Rod .250” | C276, C22 |
| Hastelloy® Rod .500” | C276, C22 |
| Hastelloy® Rod .625” | C276, C22 |
| Hastelloy® Rod .750” | C276, C22 |
| Hastelloy® Rod 1” | C276, C22 |
Rod is cut to order and sold by the inch or foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.

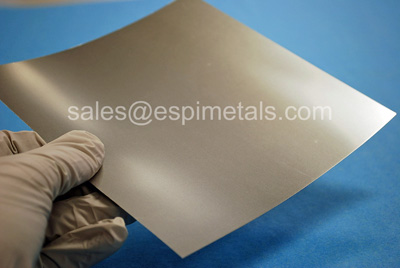

HASTELLOY® FOIL
|
Material |
Alloy |
| Hastelloy® Foil .002” | C276 |
| Hastelloy® Foil .003” | C276 |
| Hastelloy® Foil .004” | C276 |
Hastelloy® Foil .005”   |
C276 |
| Hastelloy® Foil .006” | C276 |
| Hastelloy® Foil .008” | C276 |
Foil is cut to order and sold by the square inch or square foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.
HASTELLOY® SHEET
|
Material |
Alloy |
| Hastelloy® Sheet .010” to 1” | C276, C22 |
Sheet is cut to order and sold by the square inch or square foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.
HASTELLOY® PELLETS
|
Material |
Alloy |
| Hastelloy® Pellets .125"D X .125"L | C276 |
| Hastelloy® Pellets .250"D X .250"L | C276, C22 |
Pellets are sold by the gram or kilogram. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional forms (powder, shot and ingots) or any other custom requirements.
* Hastelloy® is a registered trademark of Haynes International
|
|
