Cadmium
MATERIAL OVERVIEW
Cadmium was discovered by German chemist Friedrich Stromeyer in 1817. Stromeyer noticed while studying cadmia (zinc carbonate), that when heated, some samples exhibited a yellow color, while other samples did not. Stromeyer suspected that some unknown impurity was causing the discoloration. After further experimental investigation he was able to isolate the impurity; realizing that he had discovered a new element he named it cadmium.
In its pure form, cadmium is a silvery white, malleable metal. It is a relatively rare metal, ranking 64th in abundance among the elements in the Earth’s crust. Cadmium occurs primarily in zinc ores, and is recovered as a byproduct in the zinc refinement process.
Cadmium has a low melting temperature and tarnishes in moist air; it is ductile and very malleable. Cadmium has a very high neutron absorbing cross-section and as a result is used for neutron shielding in the nuclear industry.
Hazard: Cadmium is toxic, especially by inhalation of dust or fume. OSHA, NTP and IARC have determined cadmium to be a known carcinogen. Exposure limits: 0.005 mg/m3.
At ESPI Metals we manufacture cadmium metal into a variety of forms. For nuclear shielding applications we roll cadmium sheet to widths of up to 24” and lengths of 10 feet or more. Cadmium sheet thicknesses range from as thin as 0.001”(0.025mm) to 1”(25.4mm). Depending on the size requirement we either draw or extrude cadmium wire and rod in diameters from 0.010”(0.25mm) to 1”(25.4mm). We also have cadmium available in ingot, shot and pieces.
|
ESPI HAS OVER SIXTY YEARS EXPERIENCE MEETING OUR CUSTOMER'S UNIQUE SPECIFICATIONS. CADMIUM IS NO EXCEPTION, WE CAN MANUFACTURE CADMIUM TO NEARLY ANY CUSTOM REQUIREMENT. |
Contact ESPI at 800-638-2581 or via This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.
 |
When purchasing Cadmium from ESPI you can rest assured that your Cadmium order will be produced in a safe and environmentally responsible manner. ESPI's environmental policy pertaining to Cadmium requires that all of our Cadmium waste be contained and recycled and that no Cadmium be released to the environment. |
To view a photo of the item hover over the
icon.
GENERAL PROPERTIES
|
Symbol: |
Cd |
|
Atomic Number: |
48 |
|
Atomic Weight: |
112.41 |
|
Density: |
8.65gm/cc |
|
Melting Point: |
320.9 oC |
|
Boiling Point: |
765 oC |
|
Thermal Conductivity: |
0.969 W/cm/K @ 298.2 K |
|
Electrical Resistivity: |
6.83 microhm-cm @ 0 oC |
|
Electronegativity: |
1.7 Paulings |
|
Specific Heat: |
0.0555 Cal/g/K @ 25 oC |
|
Heat of Vaporization: |
23.9 K-Cal/gm at om at 765 oC |
|
Heat of Fusion: |
1.46 Cal/gm mole
|
TYPICAL ANALYSES - Impurities in ppm
|
Material / Purity: |
3N5 |
6N |
|
Cu |
<100 |
0.4 |
|
As |
<20 |
- |
|
Pb |
<100 |
- |
|
Sb |
<10 |
- |
|
Sn |
<50 |
- |
|
Zn |
<100 |
- |
|
Ag |
<100 |
0.03 |
|
Tl |
<20 |
- |
|
Fe |
<10 |
- |
|
Co |
<10 |
- |

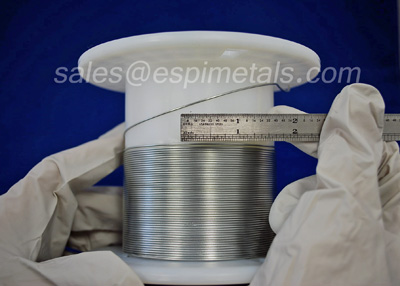

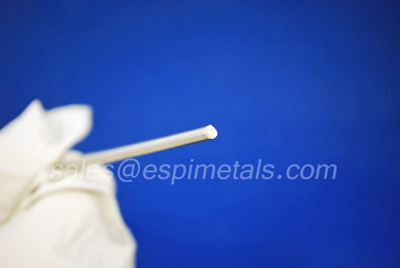

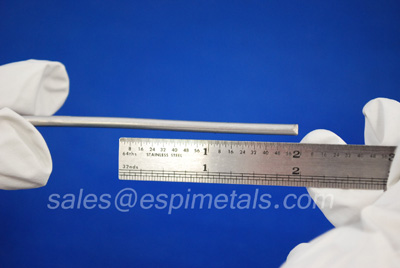

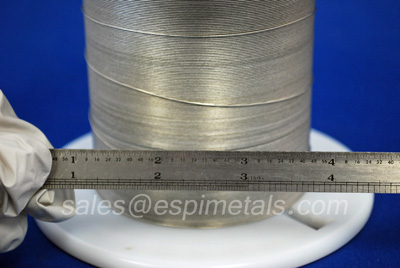

CADMIUM WIRE
|
Material |
Purity |
|
Cadmium Wire .001" |
3N, 4N, 5N |
| Cadmium Wire .002" | 3N, 4N, 5N |
| Cadmium Wire .003" | 3N, 4N, 5N |
| Cadmium Wire .004" | 3N, 4N, 5N |
| Cadmium Wire .005" | 3N, 4N, 5N |
| Cadmium Wire .006" | 3N, 4N, 5N |
| Cadmium Wire .007" | 3N, 4N, 5N |
| Cadmium Wire .008" | 3N, 4N, 5N |
| Cadmium Wire .009" | 3N, 4N, 5N |
| Cadmium Wire .010" | 3N, 4N, 5N |
| Cadmium Wire .015" | 3N, 4N, 5N |
Cadmium Wire .020"  |
3N, 4N, 5N |
| Cadmium Wire .025" | 3N, 4N, 5N |
| Cadmium Wire .030" | 3N, 4N, 5N |
Cadmium Wire .040"  |
3N, 4N, 5N |
| Cadmium Wire .060" | 3N, 4N, 5N |
| Cadmium Wire .080" | 3N, 4N, 5N |
| Cadmium Wire .090" | 3N, 4N, 5N |
Wire diameters are available in increments of .001”. Wire is spooled to order and sold by the foot or meter. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.

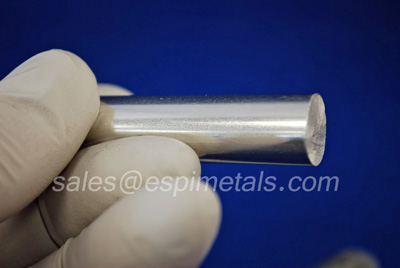

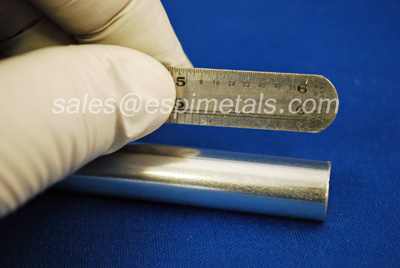

CADMIUM ROD
|
Material |
Purity |
|
Cadmium Rod .0625” |
3N5, 4N, 5N |
|
Cadmium Rod .125” |
3N5, 4N, 5N |
|
Cadmium Rod .250” |
3N5, 4N, 5N |
|
Cadmium Rod .500” |
3N5, 4N, 5N |
|
Cadmium Rod .625” |
3N5, 4N, 5N |
Additional diameters can be drawn in 2-3 days. Rod is cut to order and sold by the inch or foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters or custom sizes.

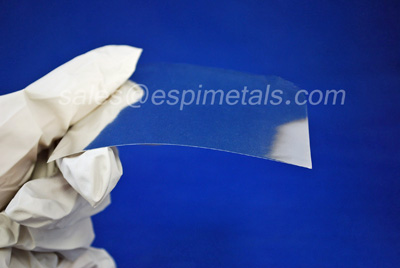

CADMIUM FOIL
|
Material |
Purity |
|
Cadmium Foil .001” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .002” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .003” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .004” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .005” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .006” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .007” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .008” |
3N, 3N5, 4N, 5N |
|
Cadmium Foil .009” |
3N, 3N5, 4N, 5N |
Foil is cut to order and sold by the square inch or square foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.
CADMIUM SHEET
|
Material |
Purity |
|
Cadmium Sheet .010” |
3N, 3N5, 4N, 5N |
| Cadmium Sheet .015 | 3N, 3N5, 4N, 5N |
| Cadmium Sheet .020" | 3N, 3N5, 4N, 5N |
| Cadmium Sheet .023" | 3N, 3N5, 4N, 5N |
| Cadmium Sheet. 025" | 3N, 3N5, 4N, 5N |
Cadmium Sheet .030"  |
3N, 3N5, 4N, 5N |
| Cadmium Sheet .032" | 3N, 3N5, 4N, 5N |
Cadmium Sheet .040"    |
3N, 3N5, 4N, 5N |
Cadmium Sheet .050"  |
3N, 3N5. 4N, 5N |
| Cadmium Sheet .060" | 3N, 3N5, 4N, 5N |
| Cadmium Sheet .080" | 3N, 3N5, 4N, 5N |
| Cadmium Sheet .100" | 3N, 3N5, 4N, 5N |
| Cadmium Sheet .150" | 3N, 3N5, 4N, 5N |
| Cadmium Sheet .250" | 3N, 3N5, 4N, 5N |
Sheet thicknesses are available in increments of .001”, are cut to order and sold by the square inch or square foot. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional thicknesses or custom sizes.
CADMIUM SPUTTERING TARGETS
|
Material |
Purity |
|
Cadmium Sputtering Target 2"D X .125"T |
3N, 4N, 5N |
|
Cadmium Sputtering Target 2"D X .250"T |
3N, 4N, 5N |
|
Cadmium Sputtering Target 3"D X .125"T |
3N, 4N, 5N |
|
Cadmium Sputtering Target 3"D X .250"T |
3N, 4N, 5N |
|
Cadmium Sputtering Target 4"D X .125"T |
3N, 4N, 5N |
|
Cadmium Sputtering Target 4"D X .250"T |
3N, 4N, 5N |
Targets are made to order and packaged individually. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional diameters, thicknesses or custom sizes.

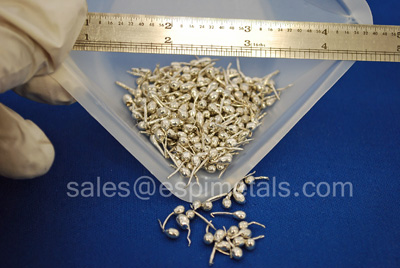

CADMIUM POWDER, SHOT, PIECES, & INGOT
|
Material |
Purity |
|
Cadmium Shot .125" |
5N, 6N |
|
Cadmium Pieces |
3N, 4N, 5N, 6N |
|
Cadmium Ingot |
3N, 3N5 4N, 6N |
|
Cadmium Powder-200 Mesh |
6N |
Powder, shot, pieces, and ingots are packaged to order and sold by the gram or kilogram. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional specifications or custom requirements.
CADMIUM COMPOUNDS
|
Material |
Purity |
|
Cadmium Oxide CdO -200 Mesh |
3N |
|
Cadmium Sulfate Hydrate 3CdSO4 · 8H2O |
3N |
|
Cadmium Telluride CdTe 1/4" Pieces by Down |
3N |
|
Cadmium Telluride CdTe -325 Mesh |
2N, 5N |
Compounds are packaged to order and sold by the gram or kilogram. Call or This email address is being protected from spambots. You need JavaScript enabled to view it. for additional specifications or custom requirements.
|
|
